For enhanced patient management and versatility, ensuring comfort whilst laying in the prone position.

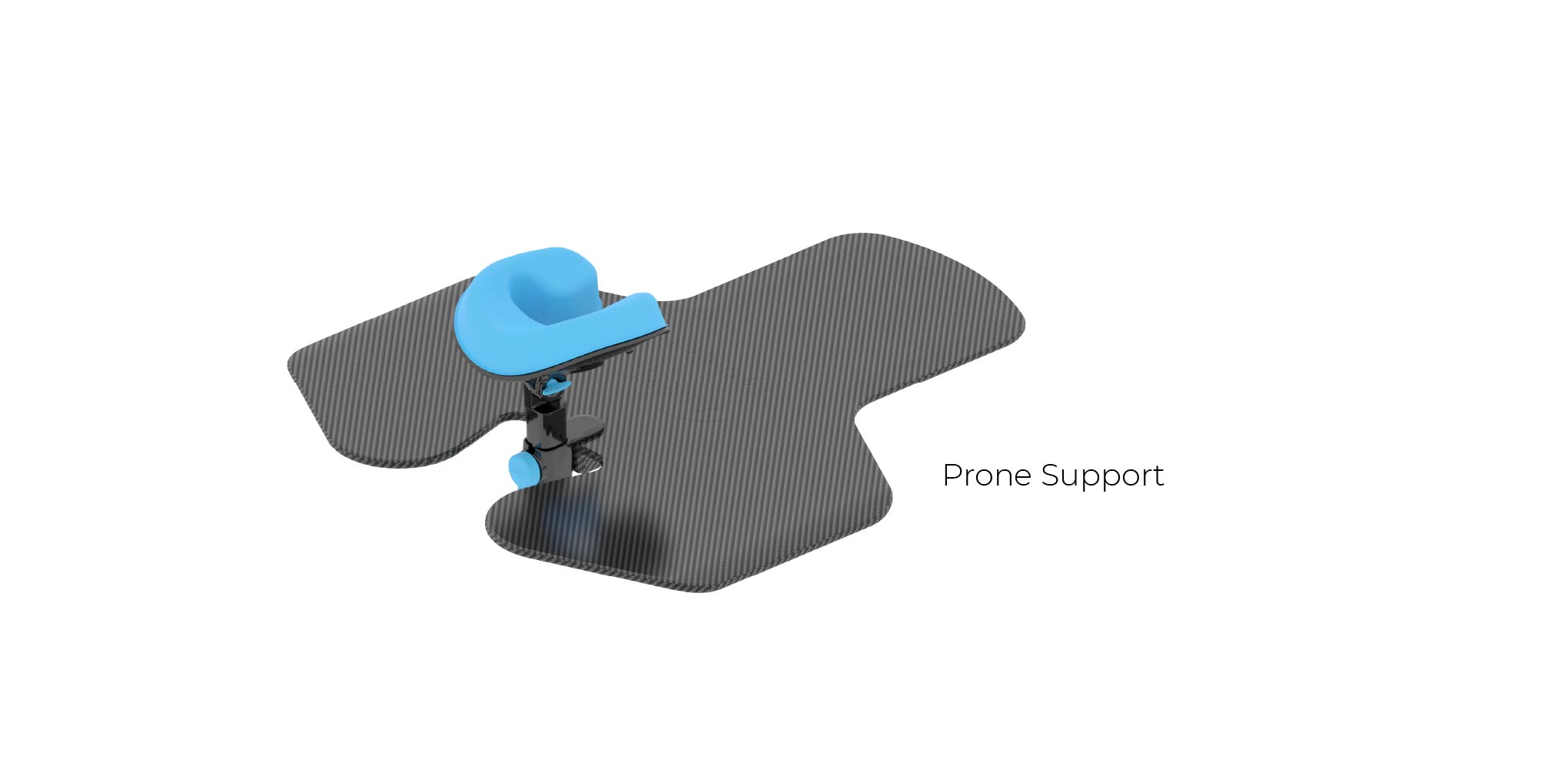

The Prone Support is the ideal solution for supporting and managing a prone patient, it provides comfortable patient positioning during C-arm image-guided procedures. This versatile device will support a patient in the prone position for multiple procedure types and is stably held for the duration of a procedure by the patient’s weight.
The arm supporting surface is cantilevered out from the imaging table, accommodating a variety of patient sizes and mobility ranges comfortably. The elevated cushioned face support provides additional comfort with ample space beneath for sight and ease of breathing. The head supporting assembly can also be removed completely to suit specific patient or case needs.
The Prone Support can be simply placed underneath the mattress using the Base Board design, allowing for efficient set-up and removal on most C-arm imaging tables.
The face pad is designed with clearance through the centre to reduce any anxiety experienced from being contained and providing space for nasal oxygen prongs.
The form of the arm supporting surface is designed to accommodate a variety of patient sizes and mobility ranges comfortably.
Ergonomic form provides range of arm positioning options
Includes a soft foam pad for comfort on soft face tissue
Unique head support design with adjustment to height and angle
Made from materials that are permeable to X-ray radiation, allowing for clear imaging
Designed for use with typical C-arm imaging table
Designed for easy set-up and removal
Can be adjusted to suit individual patient size
Product Code Configuration
AM0700 Prone Support
AM0700 Prone Support
Imaging Table Compatibility
Table Width
45cm to 60cm
Table Length
≥200cm
Table Angulation:
+/- 15° lateral & longitudinal
Table Surface:
Flat
Table Width
45cm to 60cm
Table Length
≥200cm
Table Angulation:
+/- 15° lateral & longitudinal
Table Surface:
Flat
Aluminium Equivalence
Aluminium Equivalence measured at 100kVp using narrow beam geometry.
Aluminium Equivalence measured at 100kVp using narrow beam geometry.
Interactive 3D Model
Press play button to interact with the 3D model
Press play button to interact with the 3D model
C-arm guided procedures where the patient is in prone position, especially spinal such as Vertebroplasty / Kyphoplasty / Embolization of sciatic nerve / Discogram / Percutaneous Nephrostomy Insertion. Renal and Lung Biopsy.
Please select a brochure in your preferred language to download. If you require an additional language, please contact us.
Is it radiolucent?
The support Base Board is made from carbon fibre with a foam core, giving it a combined aluminium equivalence of 0.489mm.
How do I set it up on my Imaging system?
Use only a standard flat and rectangular imaging table to maximise contact between Base Board and imaging table.
To set up, ensure the patient is in the prone position on the imaging table prior to product placement under the imaging table mattress. To remove product after procedure, slide it out prior to moving the patient. Multiple operators may be required to safely support the patient’s weight for ease of product set up and/or removal, while a single operator inserts and/or slides out the Base Board under the mattress.
Apply your local safety protocols to ensure patient safety, the product is not fixed to the imaging table and may dislodge when unsupported by patient weight.
Will it accommodate my patient’s anatomy?
The support is designed to fit patients with differing geometries and levels of mobility. The height adjustable head support offers 85mm of adjustment and can be rotated to suit body shape.
