Retrograde IR Platform

A lightweight over-patient work surface that improves workflow and patient safety during retrograde femoral access procedures.

Overview

The Retrograde IR Platform is the ultimate support for your equipment needs, providing a large, stable area for catheter/guide wire manipulation and management. The height adjustable work surface conveniently aligns with the femoral access site and improves patient comfort by eliminating the need to work directly on or around the patient’s legs.

The Retrograde IR Platform is exceptionally light, strong, radiolucent, and extremely easy to install by placing over the legs of a supine patient while they rest on the imaging table. The platform can be locked in place to ensure security during instances of patient restlessness.

Equipped with an optional extension, the platform can be set-up at two different lengths according to your requirements. The main platform is well-suited for procedures utilising shorter wires and rapid exchange catheter systems. The extended platform is suited for neuro radiology and procedures where longer equipment is required.

Highlights

Retrograde IR Platform

Bringing the large working surface closer to the access site allows for the team to work together side by side.

Retrograde IR Platform

Placing the procedural equipment over the patient rather than behind on a draped trolley, reduces the requirement to retrieve equipment from behind.

Retrograde IR Platform

The legs lock into the base to ensure the work surface is secure when you need it to be, even if the patient is restless.

Product Video

Features

Strong, stable work-surface

Suitable for supporting clinicians' wrists and common equipment for interventional radiology procedures

Quick and easy set-up and removal

Designed for easy set-up and removal

Secures over patient

Creates a large, adjustable work-surface for laying procedural equipment

Easy Positioning

Can be adjusted to suit individual patient size

Radiolucent

Made from materials that are permeable to X-ray radiation, allowing for clear imaging

Optional extension

If a longer work-surface is required to allow operators to work side by side, the optional extension can easily be added

Easy to clean

Smooth surface allows easy clean-up with approved cleaners and disinfectants

Specifications

Dimensions and Weight

+
No items found.

Dimensions

Retrograde IR Platform + Extension
200cm

Height
28cm (38 with leg extension)/17cm

Extension

67cm x 75cm

Weight

Retrograde IR Platform
5kg

Extension
3.6kg

Max weight Supported
10kg

Dimensions and Weight

Dimensions

Retrograde IR Platform + Extension
200cm

Height
28cm (38 with leg extension)/17cm

Extension

67cm x 75cm

Weight

Retrograde IR Platform
5kg

Extension
3.6kg

Max weight Supported
10kg

Product Code Configuration

+
No items found.

AM0420 Retrograde IR Platform + Extension

AM0400 Retrograde IR Platform

AM0410 IR Platform Extension

Product Code Configuration

AM0420 Retrograde IR Platform + Extension

AM0400 Retrograde IR Platform

AM0410 IR Platform Extension

Imaging Table Compatibility

+
No items found.

Ensure table geometry falls within this specification

Table Width
45cm to 70cm

Table Length
≥240cm

Table Angulation:

+/- 15° lateral & longitudinal

Table Surface:
Flat

Imaging Table Compatibility

Ensure table geometry falls within this specification

Table Width
45cm to 70cm

Table Length
≥240cm

Table Angulation:

+/- 15° lateral & longitudinal

Table Surface:
Flat

Aluminium Equivalence

+
No items found.

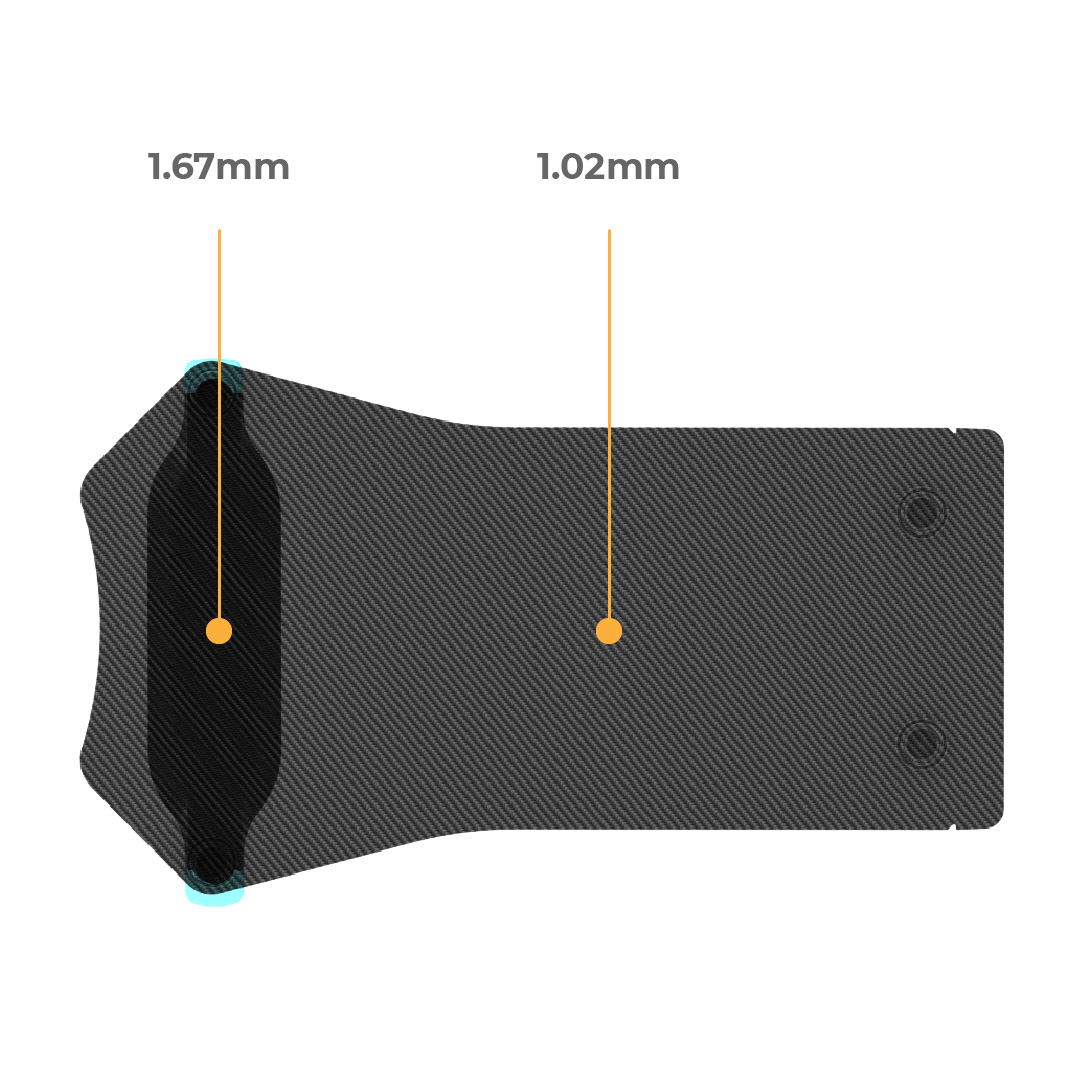

Aluminium Equivalence measured at 100kVp using narrow beam geometry.
Aluminium Equivalence
Aluminium Equivalence measured at 100kVp using narrow beam geometry.

Interactive 3D Model

+
No items found.

Press play button to interact with the 3D model

Interactive 3D Model

Press play button to interact with the 3D model

Adept Medical Storage System (AM0001) Configuration

+
No items found.

A space-saving, storage solution for the Adept Medical suite.

Custom-designed for your Adept Medical products, the Adept Medical Storage System* is a low-profile, wall hanging solution to help organise your workspace with ease, speed and efficiency.

*Brackets are intended for specified Adept Medical product use only.

**Note: Products shown, and device placement are artist’s impressions only.

AM0400 Retrograde IR Platform requires 1xAM0001 (contains 2x brackets), and AM0420 Retrograde IR Platform + Extension requires 2x AM0001 (contains 4x brackets).

Download the Brochure or click here to order yours today.

Adept Medical Storage System (AM0001) Configuration

A space-saving, storage solution for the Adept Medical suite.

Custom-designed for your Adept Medical products, the Adept Medical Storage System* is a low-profile, wall hanging solution to help organise your workspace with ease, speed and efficiency.

*Brackets are intended for specified Adept Medical product use only.

**Note: Products shown, and device placement are artist’s impressions only.

AM0400 Retrograde IR Platform requires 1xAM0001 (contains 2x brackets), and AM0420 Retrograde IR Platform + Extension requires 2x AM0001 (contains 4x brackets).

Download the Brochure or click here to order yours today.

+
No items found.

+
No items found.

+
No items found.

Training Platform

The Adept Medical Training Platform has been produced to assist Adept Medical’s Table Accessories users by providing information on our product portfolio.

With a step-by-step pictorial guide on unboxing, set-up, usage, cleaning, re-boxing, repairs, warranty and replacement parts, it has been developed to support our customers in every step.

Continue to training platform

Applications

Interventional Radiology
Interventional Radiology

Retrograde femoral artery approach procedures, especially useful where you have long wires or lots of equipment such as Ablation / Interventional Oncology.

Interventional Cardiology
Interventional Cardiology

Retrograde femoral artery approach procedures, especially useful where you have long wires or lots of equipment such as Electrophysiology / Structural Heart.

Interventional Neuro Radiology
Interventional Neuro Radiology

Retrograde femoral artery approach procedures, especially useful where you have long wires or Cerebral Angiography / Stroke / Anuerism.

Brochure Downloads

Please select a brochure in your preferred language to download. If you require an additional language, please contact us.

Brochure Downloads

FAQ

+

+

+

+

+

+

How much does the platform weigh?

+

At 5 kgs, it is very light and easy to set up.

Does it work with my Imaging system?

+

It works with all commonly used imaging systems with tables longer than 2.4 meters.

Does it fit all patients?

+

The platform will fit over most patients, it is supplied with leg extensions giving an additional 10cm of clearance over the thighs for larger patients.

Learn more about this product on Adeptmedicaltraining.com

Compatible Products

ArmSure

Provides simple, safe, and secure management of your patient’s arms, protecting the sterile field, with the added benefit of providing additional radiation protection in cath labs.

View Product
IR System

The IR System combines the STARBoard with the Extension Tray and IR Shield, forming a complete patient positioning system for left side radial access and providing additional radiation protection.

View Product

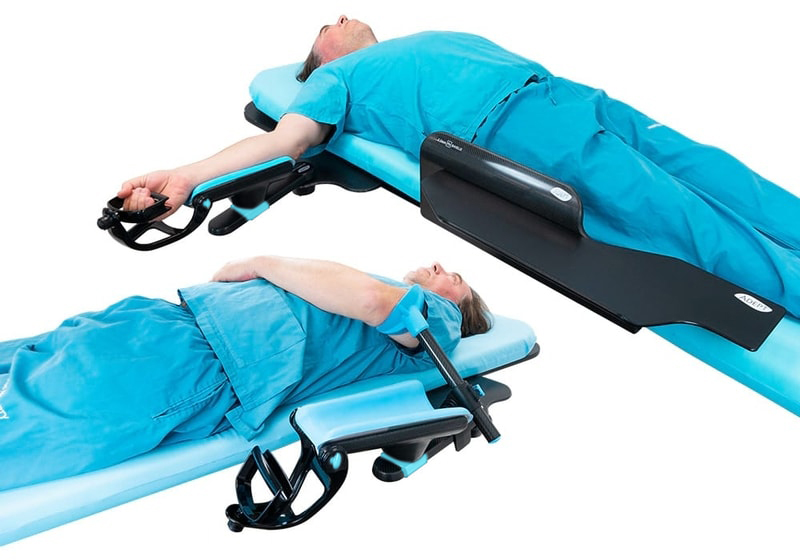

STARSystem
